class pysketcher.Angle(value)

Bases: float

A representation of a 2-Dimensional Angle.

An Angle is a float which is limited in value to between and . Values outside of this range have either added or subtracted repeatedly until they are within this bound.

Parameters:

value (float) – The value of the angle to create.

Return type:

Angle

Examples

>>> Angle(1.0)
Angle(1.0)

>>> Angle(np.pi / 2)
Angle(1.5707963267948966)

>>> Angle(123)
Angle(-2.6637061435917246)

>>> Angle(2 * np.pi)
Angle(0.0)

class pysketcher.AngularDimension(text, start, end, center)

Bases: Composition

Used to indicate the angle between two points about a given center.

Parameters:

• start (Point) – the point from which the angle should be indicated

• end (Point) – the point to which the angle should be indicated

• center (Point) – the point about which the angle should be indicated

• text (str) –

returns: A composition.

Examples

>>> arc1 = ps.Arc(ps.Point(0.25, 0.25), 1.0, ps.Angle(0.0), ps.Angle(np.pi / 2))
>>> arc1.style.line_color = ps.Style.Color.BLUE
>>> dim1 = ps.AngularDimension("$a$", arc1.start, arc1.end, arc1.center)
>>>
>>> arc2 = ps.Arc(
...     ps.Point(0.25, -0.25), 1.0, ps.Angle(0.0), ps.Angle(-np.pi / 2)
... )
>>> arc2.style.line_color = ps.Style.Color.GREEN
>>> dim2 = ps.AngularDimension("$b$", arc2.start, arc2.end, arc2.center)
>>>
>>> arc3 = ps.Arc(
...     ps.Point(-0.25, 0.25), 1.0, ps.Angle(np.pi / 2), ps.Angle(np.pi / 2)
... )
>>> arc3.style.line_color = ps.Style.Color.RED
>>> dim3 = ps.AngularDimension("$c$", arc3.start, arc3.end, arc3.center)
>>>
>>> fig = ps.Figure(-2.0, 2.0, -2.0, 2.0, backend=MatplotlibBackend)
>>> fig.add(arc1)
>>> fig.add(dim1)
>>> fig.add(arc2)
>>> fig.add(dim2)
>>> fig.add(arc3)
>>> fig.add(dim3)
>>> fig.save("pysketcher/images/angular_dimension.png")

class Orientation(value, names=None, *, module=None, qualname=None, type=None, start=1, boundary=None)

Bases: Enum

Specifies if the dimension should be drawn inside or outside the angle.

property center: Point

The center of the dimension.

property end: Point

The end of the dimension.

property extension_lines: bool

If true, extension lines will be drawn.

property start: Point

The start of the dimension.

class pysketcher.Arc(center, radius, start_angle, arc_angle, resolution=180)

Bases: Curve

A representation of a continuous connected subset of a circle.

Parameters:

• center (Point) – The center of the Arc.

• radius (float) – The radius of the Arc.

• start_angle (Angle) – The angle from the +ve horizontal where the Arc should start.

• arc_angle (Angle) – The angle (from the start_angle) where the Arc should end.

• resolution (int) – The number of points in the Arc.

Examples

>>> arc = ps.Arc(ps.Point(0.0, 0.0), 1.0, Angle(0.0), Angle(np.pi / 2))
>>> fig = ps.Figure(-0.5, 1.5, -0.5, 1.5, backend=MatplotlibBackend)
>>> fig.add(arc)
>>> fig.save("pysketcher/images/arc.png")

An example of an Arc.

translate(vec)

Translates the arc by the specified vector.

Parameters:

vec (Point) – The vector through which the arc should be translated.

Returns:

A copy of the arc which has been translated by vec.

Return type:

Arc

property arc_angle: Angle

The angle from the start_angle to which the arc ends.

property center: Point

The center of the arc.

property end: Point

The point at which the arc ends.

property end_angle: Angle

The angle from the +ve horizontal to which the arc ends.

property mid: Point

The middle of the arc.

property radius: float

The radius of the arc.

property start: Point

The point at which the arc starts.

property start_angle: Angle

The angle from the +ve horizontal from where the arc starts.

class pysketcher.ArcAnnotation(text, arc, text_position=TextPosition.MIDDLE)

Bases: Text

Annotates an arc with the provided text.

Parameters:

• text (str) –

• arc (Arc) –

• text_position (TextPosition) –

class pysketcher.Arrow(start, end)

Bases: Line

Draw an arrow as Line with arrow pointing towards end.

Parameters:

• start (Point) – The start of the arrow.

• end (Point) – The end of the arrow.

Examples

>>> up_arrow = ps.Arrow(ps.Point(0.0, 1.0), ps.Point(0.0, 3.0))
>>> down_arrow = ps.Arrow(ps.Point(0.0, -1.0), ps.Point(0.0, -3.0))
>>> left_arrow = ps.Arrow(ps.Point(-1.0, 0.0), ps.Point(-3.0, 0.0))
>>> right_arrow = ps.Arrow(
...     ps.Point(1.0, 0.0),
...     ps.Point(3.0, 0.0),
... )
>>> fig = ps.Figure(-4.0, 4.0, -4.0, 4.0, backend=MatplotlibBackend)
>>> fig.add(up_arrow)
>>> fig.add(down_arrow)
>>> fig.add(left_arrow)
>>> fig.add(right_arrow)
>>> fig.save("pysketcher/images/arrow.png")

An example of Arrow.

class pysketcher.Axis(start, length, label, rotation_angle=Angle(0.0))

Bases: Composition

A representation of a axis.

Draw axis from start with length to the right (x axis). Place label at the end of the arrow tip. Then return rotation_angle (in degrees). The label_spacing denotes the space between the label and the arrow tip as a fraction of the length of the plot in x direction. A tuple can be given to adjust the position in both the x and y directions (with one parameter, the x position is adjusted).

Parameters:

• start (Point) – The start of the Axis.

• length (float) – The length of the Axis.

• label (str) – A text label for the Axis.

• rotation_angle (Angle) – The Angle

class pysketcher.Circle(center, radius, resolution=180)

Bases: Arc

A representation of a 2D circle.

Parameters:

• center (Point) – The center of the circle.

• radius (float) – The radius of the circle.

Examples

>>> circle = ps.Circle(ps.Point(1.5, 1.5), 1)
>>> fig = ps.Figure(0, 3, 0, 3, backend=MatplotlibBackend)
>>> fig.add(circle)
>>> fig.save("pysketcher/images/circle.png")

An example of Circle.

class pysketcher.Composition(shapes)

Bases: Stylable

Provides a convenient means to group shapes together.

Parameters:

shapes (Dict[str, Shape]) –

class CompositionStyle(composition)

Bases: Style

Presents the Stylable contract for a Composition.

Sets the style of each object in the composition transparently.

Parameters:

composition (Composition) –

property arrow: ArrowStyle

The arrow nature of all Shapes in the composition.

property fill_color: Color

The fill color of all Shapes in the composition.

property fill_pattern: FillPattern

The fill pattern of all Shapes in the composition.

property line_color: Color

The line color of all Shapes in the composition.

property line_style: LineStyle

The line style of all Shapes in the composition.

property line_width: float

The line width of all Shapes in the composition.

property shadow: float

The shadow style of all Shapes in the composition.

add(key, shape)

Adds a shape to the composition.

Parameters:

• key (str) – the name of the shape to be added

• shape (Shape) – the shape to be added.

Returns:

a copy of the composition with the requisite shape added

Return type:

Composition

apply(func)

Applies a function to every member of a Composition.

Parameters:

func (Callable[[Shape | Text | Composition], T]) – The function to apply.

Returns:

A dictionary of results.

Return type:

Dict[str, T]

merge(comp)

Merge two compositions.

Parameters:

comp (Composition) – the composition to merge with this one.

Returns:

a new composition made up of this one and the provided one.

Return type:

Composition

rotate(angle, center)

Rotate the composition.

Parameters:

• angle (float) – The Angle in radians through which the shape should be rotated.

• center (Point) – The Point about which the rotation should be performed.

Returns:

A copy of the Composition rotated through angle about center.

Return type:

Composition

scale(factor)

Scale the composition.

Parameters:

factor – The factor by which the Composition should be scaled.

Returns:

A copy of the Composition scaled by factor.

Return type:

Composition

translate(vec)

Translate the composition.

Parameters:

vec – The vector through which the Composition should be translated.

Returns:

A copy of the Composition translated through vec.

Return type:

Composition

class pysketcher.CubicBezier(start, points, resolution=50)

Bases: Curve

A cubic bezier curve implementation.

Examples

>>> s = ps.CubicBezier(
...     ps.Point(0, 0), [(ps.Point(1, 1), ps.Point(2.5, 0.5), ps.Point(2, 2.5))]
... )
>>> fig = ps.Figure(-0.5, 3.0, -0.5, 3.0, backend=MatplotlibBackend)
>>> fig.add(s)
>>> fig.save("pysketcher/images/cubic_bezier.png")

An example of CubicBezier.

Parameters:

• start (Point) –

• points (List[Tuple[Point, Point, Point]]) –

• resolution (int) –

property end: Point

The last point of the curve.

property start: Point

The first point of the curve.

class pysketcher.Curve(points)

Bases: Shape

General curve as a sequence of (x,y) coordintes.

Examples

>>> code = ps.Curve(
...     [
...         ps.Point(0, 0),
...         ps.Point(1, 1),
...         ps.Point(2, 4),
...         ps.Point(3, 9),
...         ps.Point(4, 16),
...     ]
... )
>>> code.style.line_color = ps.Style.Color.BLACK
>>> model = ps.Composition(dict(text=code))
>>> fig = ps.Figure(0, 5, 0, 16, backend=MatplotlibBackend)
>>> fig.add(model)
>>> fig.save("pysketcher/images/curve.png")

An example of Curve.

Parameters:

points (List[Point]) –

rotate(angle, center)

Rotate all coordinates.

Parameters:

• angle (Angle) – The Angle (in radians) through which the rotation should be performed.

• center (Point) – The Point about which the rotation should be performed.

Returns:

A copy of the Curve which has had all points rotated in the

described manner.

Return type:

Curve

scale(factor)

Scale all coordinates by factor: x = factor*x, etc.

Parameters:

factor (float) –

Return type:

Curve

translate(vec)

Translate all coordinates by a vector vec.

Parameters:

vec (Point) –

Return type:

Curve

property points

The points which make up the curve.

property xs

The x co-ordinates of the points of the curve.

property ys

The y co-ordinates of the Points of the curve.

class pysketcher.Dashpot(start, total_length, bar_length=None, width=None, dashpot_length=None, piston_pos=None)

Bases: Composition

A representation of a dashpot.

Specify a vertical dashpot of height total_length and start as bottom/starting point. The first bar part has length bar_length. Then comes the dashpot as a rectangular construction of total width width and height dashpot_length. The position of the piston inside the rectangular dashpot area is given by piston_pos, which is the distance between the first bar (given by bar_length) to the piston. If some of dashpot_length, bar_length, width or piston_pos are not given, suitable default values are calculated.

Parameters:

• start (Point) – The starting point of the Dashpot.

• total_length (float) – The total length of the Dashpot including bar.

• bar_length (float) – The length of the bar.

• width (float) – The width of the dashpot.

• dashpot_length (float) – The length of the Dashpot excluding bar.

• piston_pos (float) – The position of the piston. Defaults to 1/3 length.

Examples

>>> L = 12.0
>>> H = L / 6.0
>>> x = L / 2.0
>>> d_start = ps.Point(0, 0)
>>> d = ps.Dashpot(d_start, L + x)
>>> fig = ps.Figure(-3, 3, -1, 13, backend=MatplotlibBackend)
>>> fig.add(d)
>>> fig.save("pysketcher/images/dashpot.png")

An example of Dashpot.

class pysketcher.DoubleArrow(start, end)

Bases: Line

Draw an arrow as Line with arrow pointing towards start and end.

Parameters:

• start (Point) – The start of the double arrow.

• end (Point) – The end of the double arrow.

Examples

>>> double_arrow = ps.DoubleArrow(
...     ps.Point(1.0, 1.0),
...     ps.Point(
...         3.0,
...         1.0,
...     ),
... )
>>> fig = ps.Figure(0.0, 4.0, 0.0, 2.0, backend=MatplotlibBackend)
>>> fig.add(double_arrow)
>>> fig.save("pysketcher/images/double_arrow.png")

An example of DoubleArrow.

class pysketcher.Figure(x_min, x_max, y_min, y_max, backend)

Bases: object

Provides the developer interface to the pysketcher backends.

Provides the means to render models into either viewable, or savable (or both) images depending on which backend is chosen.

Parameters:

• x_min (float) – The minimum x-coordinate that will be rendered.

• x_max (float) – The maximum x-coordinate that will be rendered.

• y_min (float) – The minimum y-coordinate that will be rendered.

• y_max (float) – The maximum y-coordinate that will be rendered.

• backend (Type[Backend]) –

Examples

>>> circle = ps.Circle(ps.Point(1.5, 1.5), 1)
>>> fig = ps.Figure(0, 3, 0, 3, backend=MatplotlibBackend)
>>> fig.add(circle)
>>> fig.save("pysketcher/images/figure.png")

An example of Figure.

add(shape)

Adds a shape to the Figure.

Once the shape is added, when :method:save or :method:show is called, the portion of the shape which is within the bounds of the figure will be included in the image.

Parameters:

shape (Shape | Text | Composition) – The shape which should be added to the figure.

Return type:

None

animate(func, interval)

Renders an animation from the provided function.

If the backend supports it, then an animation will be rendered and stored internally by the backend.

Parameters:

• func (Callable[[float], Shape | Text | Composition]) – This function takes a parameter and provides a Drawable for that parameter value.

• interval (Tuple[float, float] | Tuple[float, float, float]) – the start and end values for the parameter and an optional increment. If the increment is not provided, the parameter will be incremented by 1.

erase()

Removes all the shapes from the figurnnnne.

save(filename)

Saves the rendered figure to a file.

If the backed supports it, then an image will be saved to the location specified in filename.

Parameters:

filename (str) – The location to which the figure should be saved.

Return type:

None

save_animation(filename)

Saves a previously rendered animation to a file.

Parameters:

filename (str) –

show()

Shows an interactive view of the figure.

If the backend supports it, then an interactive figure will be shown in a UI window.

class pysketcher.Force(text, start, end, text_position=TextPosition.MIDDLE)

Bases: Composition

A composition of Arrow and LinearAnnotation.

Parameters:

• text (str) –

• start (Point) –

• end (Point) –

• text_position (TextPosition) –

class pysketcher.Gravity(start, length)

Bases: Force

Downward-pointing gravity arrow with the symbol g.

class pysketcher.Line(start, end)

Bases: Curve

A representation of a line primitive.

Parameters:

• start (Point) – The starting point of the line.

• end (Point) – The end point of the line.

Example

>>> a = ps.Line(ps.Point(1.0, 2.0), ps.Point(4.0, 3.0))
>>> b = a.rotate(np.pi / 2, ps.Point(1.0, 2.0))
>>> fig = ps.Figure(0, 5, 0, 5, backend=MatplotlibBackend)
>>> fig.add(a)
>>> fig.add(b)
>>> fig.save("pysketcher/images/line.png")

An example of Line.

interval(x_range=None, y_range=None)

Returns a smaller portion of a line.

Parameters:

• x_range (Tuple[float, float]) – The range of x-coordinates which should be used to obtain the segment

• y_range (Tuple[float, float]) – The range of y-coordinates which should be used to obtain the segment

Returns:

A line bounded to either x_range or y_range.

Raises:

ValueError – If the line is vertical and x_range is provided, or if the line is horizontal and y_range is provided.

rotate(angle, center)

Rotate the line through an angle about a point.

Parameters:

• angle (Angle) – the angle in radians through which the rotation should occur.

• center (Point) – the point about which the rotation should occur.

Returns:

A copy of the line rotated through angle about center.

Return type:

Line

property end: Point

The end point of the line.

property start: Point

The starting point of the line.

class pysketcher.LineAnnotation(text, line, text_position=TextPosition.MIDDLE)

Bases: Text

Annotates a line with the provided text.

Parameters:

• text (str) –

• line (Line) –

• text_position (TextPosition) –

class pysketcher.LinearDimension(text, start, end, offset_style=OffsetStyle.ALIGNED)

Bases: Composition

Used to indicate the linear distance between two points.

Examples

>>> triangle1 = ps.Triangle(ps.Point(1, 1), ps.Point(1, 2), ps.Point(3, 1))
>>> dim1 = LinearDimension(r"$c$", ps.Point(3, 1), ps.Point(1, 2))
>>> text1 = ps.Text("Aligned", ps.Point(2, 0.5))
>>>
>>> triangle2 = ps.Triangle(ps.Point(5, 1), ps.Point(5, 2), ps.Point(7, 1))
>>> dim2 = LinearDimension(r"$a$", ps.Point(7, 1), ps.Point(5, 2))
>>> dim2.offset_style = LinearDimension.OffsetStyle.HORIZONTAL
>>> text2 = ps.Text("Horizontal", ps.Point(6, 0.5))
>>>
>>> triangle3 = ps.Triangle(ps.Point(9, 1), ps.Point(9, 2), ps.Point(11, 1))
>>> dim3 = LinearDimension(r"$b$", ps.Point(11, 1), ps.Point(9, 2))
>>> dim3.offset_style = LinearDimension.OffsetStyle.VERTICAL
>>> text3 = ps.Text("Vertical", ps.Point(10, 0.5))
>>>
>>> fig = ps.Figure(0, 13, 0, 3, backend=MatplotlibBackend)
>>> fig.add(triangle1)
>>> fig.add(dim1)
>>> fig.add(text1)
>>> fig.add(triangle2)
>>> fig.add(dim2)
>>> fig.add(text2)
>>> fig.add(triangle3)
>>> fig.add(dim3)
>>> fig.add(text3)
>>> fig.save("pysketcher/images/linear_dimension.png")

An example of LinearDimension.

Parameters:

• text (str) –

• start (Point) –

• end (Point) –

• offset_style (OffsetStyle) –

class OffsetStyle(value, names=None, *, module=None, qualname=None, type=None, start=1, boundary=None)

Bases: Enum

The style of offset in a Linear dimension.

property end: Point

The end of the dimension.

property offset: float

How far the dimension should be offset from the provided points.

property offset_style: OffsetStyle

Specifies the orientation of the drawn dimension.

property start: Point

The start of the dimension.

class pysketcher.Moment(text, center, radius)

Bases: Composition

A symbol which represents a moment.

This is an ArcWithText with the arc_angle fixed at .

Parameters:

• text – The text to display.

• center – The centre of the moment.

• radius – The radius of the moment.

• start_angle – The angle from the +ve horizontal at which the moment should start.

• text_spacing – The spacing of the text.

• resolution – The number of points on the arc.

Examples

>>> moment = ps.Moment("$M$", ps.Point(0, 0), 1.0)
>>> fig = ps.Figure(-1.2, 1.2, -1.2, 1.2, backend=MatplotlibBackend)
>>> fig.add(moment)
>>> fig.save("pysketcher/images/moment.png")

An example of Moment.

class Direction(value, names=None, *, module=None, qualname=None, type=None, start=1, boundary=None)

Bases: Enum

Indicates the direction of the moment.

class Orientation(value, names=None, *, module=None, qualname=None, type=None, start=1, boundary=None)

Bases: Enum

Indicated the orientation of the moment.

class pysketcher.Point(x, y)

Bases: object

Immutable Point class which implements basic point arithmetic.

Parameters:

• x (float) – float The x co-ordinate

• y (float) – float The y co-ordinate

static from_coordinate_lists(xs, ys)

Generates points from lists of co-ordinates.

Parameters:

• xs (List[float]) – the x co-ordinates

• ys (List[float]) – the y co-ordinates

Returns:

A list of Point made up of the respective co-ordinates.

Raises:

ValueError – When the co-ordinates lists are of different lengths.

Return type:

List[Point]

rotate(angle, center)

Returns a Point, angle (in radians) around (x,`y`).

Parameters:

• angle (Angle) – The angle through which the rotation should be made.

• center (Point) – The point about which the rotation should be made.

Returns:

The rotated point.

Return type:

Point

scale(factor)

Scale point coordinates by factor: x = factor*x, etc.

Parameters:

factor (float) – the amount the Point should be scaled by.

Returns:

The scaled point.

Return type:

Point

static to_coordinate_lists(ps)

Generates lists of co-ordinates from points.

Parameters:

ps (List[Point]) –

Return type:

Tuple[List[float], List[float]]

translate(vec)

Translate point by a vector vec.

Parameters:

vec (Point) – The vector (Point) through which the point should be translated.

Returns:

The translated vector.

Return type:

Point

property angle: Angle

Returns the Angle the Point makes to the +ve horizontal.

property normal: Point

Returns a Point of length 1, :math:$\frac{\pi}{2}$ from self.

property radius: float

Returns the distance from Point(0.,0.) to this point.

property unit_vector: Point

Returns a Point of length 1 in the direction of the Point.

property x: float

The x co-ordinate of the Point.

property y: float

The y co-ordinate of the Point.

class pysketcher.RadialDimension(text, center, edge)

Bases: Composition

Used to indicate radial distances.

Examples

>>> circle1 = ps.Circle(ps.Point(1.5, 1.5), 0.8)
>>> circle1.style.line_width = 1
>>> dim1 = RadialDimension(r"$r$", circle1.center, circle1(np.pi / 3))
>>>
>>> circle2 = ps.Circle(ps.Point(3.5, 1.5), 0.8)
>>> circle2.style.line_width = 1
>>> dim2 = RadialDimension(r"$r$", circle2.center, circle2(np.pi / 3))
>>> dim2.diameter = True
>>>
>>> circle3 = ps.Circle(ps.Point(5.5, 1.5), 0.8)
>>> circle3.style.line_width = 1
>>> dim3 = RadialDimension(r"$r$", circle3.center, circle3(np.pi / 3))
>>> dim3.center_mark = True
>>>
>>> circle4 = ps.Circle(ps.Point(7.5, 1.5), 0.8)
>>> circle4.style.line_width = 1
>>> dim4 = RadialDimension(r"$r$", circle4.center, circle4(np.pi / 3))
>>> dim4.center_line = True
>>>
>>> circle5 = ps.Circle(ps.Point(9.5, 1.5), 0.8)
>>> circle5.style.line_width = 1
>>> dim5 = RadialDimension(r"$r$", circle5.center, circle5(np.pi / 3))
>>> dim5.diameter = True
>>> dim5.center_line = True
>>>
>>> fig = ps.Figure(0, 11, 0, 3, backend=MatplotlibBackend)
>>> fig.add(circle1)
>>> fig.add(dim1)
>>> fig.add(circle2)
>>> fig.add(dim2)
>>> fig.add(circle3)
>>> fig.add(dim3)
>>> fig.add(circle4)
>>> fig.add(dim4)
>>> fig.add(circle5)
>>> fig.add(dim5)
>>> fig.save("pysketcher/images/radial_dimension.png")

An example of RadialDimension.

Parameters:

• text (str) –

• center (Point) –

• edge (Point) –

property center_line: bool

If true then a line will be drawn from the center to the circumference.

property center_mark: bool

If true, a center mark will be drawn.

property diameter: bool

If true, the dimension indicates diameter rather than radius.

class pysketcher.Rectangle(lower_left_corner, width, height)

Bases: Curve

A representation of a rectangle.

Rectangle specified by the point lower_left_corner, width, and height.

Parameters:

• lower_left_corner (Point) – The point from which the Rectangle should be drawn.

• width (float) – The width of the Rectangle.

• height (float) – The height of the Rectangle.

Examples

>>> code = ps.Rectangle(ps.Point(1, 1), 3, 4)
>>> model = ps.Composition(dict(text=code))
>>> fig = ps.Figure(0, 5, 0, 5, backend=MatplotlibBackend)
>>> fig.add(model)
>>> fig.save("pysketcher/images/rectangle.png")

An example of Rectangle.

rotate(angle, center)

Rotates the rectangle through angle radians about center.

Parameters:

• angle (Angle) – The angle in radians through which the rotation should be.

• center (Point) – The point about which the rotation should be performed.

Returns:

A curve which looks like a rectangle rotated. We need to fix this so that the rectangle class supports rectangles with sides which are not parallel to the horizontal.

Return type:

Curve

property height: float

The height of the rectangle.

property lower_left: Point

The lower left point of the rectangle.

property lower_right: Point

The lower right point of the rectangle.

property upper_left: Point

The upper left point of the rectangle.

property upper_right: Point

The upper right point of the rectangle.

property width: float

The width of the rectangle.

class pysketcher.Shape

Bases: Stylable

Superclass for drawing different geometric shapes.

Subclasses define shapes, but drawing, rotation, translation, etc. are done in generic functions in this superclass.

abstract rotate(angle, center)

Rotate the shape.

Parameters:

• angle (float) – The Angle in radians through which the shape should be rotated.

• center (Point) – The Point about which the rotation should be performed.

Raises:

NotImplementedError – when shape does not implement rotate.

Return type:

Shape

scale(factor)

Scale the shape.

Parameters:

factor – The factor by which the Shape should be scaled.

Raises:

NotImplementedError – when shape does not implement scale.

Return type:

Shape

translate(vec)

Translate the shape.

Parameters:

vec – The vector through which the Shape should be translated.

Raises:

NotImplementedError – when shape does not implement translate.

Return type:

Shape

class pysketcher.SimpleSupport(position, size)

Bases: Composition

A representation of a simple support.

Often used in static load analysis, this shows a diagrammatic representation of a point support.

Parameters:

• position (Point) – The top of the simple support.

• size (float) – The distance from the top of the simple support to the center of the base.

Examples

>>> s = ps.SimpleSupport(ps.Point(1.0, 1.0), 0.5)
>>> fig = ps.Figure(0, 2.0, 0, 1.5, backend=MatplotlibBackend)
>>> fig.add(s)
>>> fig.save("pysketcher/images/simple_support.png")

An example of SimpleSupport.

property mid_support: Point

Returns the midpoint of the base of the support.

class pysketcher.SketchyFunc1(name=None, name_pos='start', x_min=0, x_max=6, y_min=0, y_max=2)

Bases: Spline

A typical function curve used to illustrate an “arbitrary” function.

Examples

>>> f = ps.SketchyFunc1()
>>> fig = ps.Figure(0.0, 7.0, 0.0, 3.0, backend=MatplotlibBackend)
>>> fig.add(f)
>>> fig.save("pysketcher/images/sketchyfunc1.png")

An example of SketchyFunc1.

class pysketcher.SketchyFunc2(x_min=0, x_max=2.25, y_min=0.046679703125, y_max=1.259375)

Bases: Curve

A typical function curve used to illustrate an “arbitrary” function.

Examples

>>> f = ps.SketchyFunc2()
>>> fig = ps.Figure(0.0, 3.0, 0.0, 1.5, backend=MatplotlibBackend)
>>> fig.add(f)
>>> fig.save("pysketcher/images/sketchyfunc2.png")

An example of SketchyFunc2.

class pysketcher.SketchyFunc3(x_min=0, x_max=6, y_min=0.5, y_max=3.8)

Bases: Spline

A typical function curve used to illustrate an “arbitrary” function.

Examples

>>> f = ps.SketchyFunc3()
>>> fig = ps.Figure(0.0, 7.0, 0.0, 4.5, backend=MatplotlibBackend)
>>> fig.add(f)
>>> fig.save("pysketcher/images/sketchyfunc3.png")

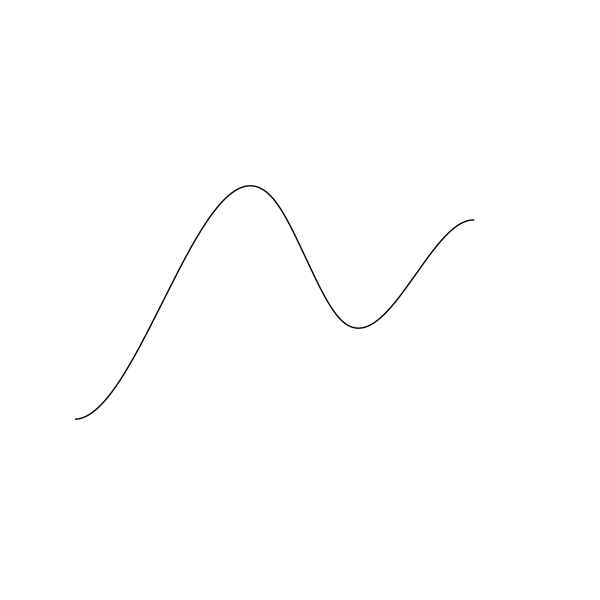

An example of SketchyFunc3.

class pysketcher.SketchyFunc4(name_pos='start', x_min=0, x_max=6, y_min=0.5, y_max=1.8)

Bases: Spline

A typical function curve used to illustrate an “arbitrary” function.

Can be a companion function to SketchyFunc3.

Examples

>>> f = ps.SketchyFunc4()
>>> fig = ps.Figure(0.0, 7.0, 0.0, 3.0, backend=MatplotlibBackend)
>>> fig.add(f)
>>> fig.save("pysketcher/images/sketchyfunc4.png")

An example of SketchyFunc4.

class pysketcher.Spline(points, degree=3, resolution=501)

Bases: Curve

A univariate spline.

Note: UnivariateSpline interpolation may not work if

the x[i] points are far from uniformly spaced.

Examples

>>> s = ps.Spline(
...     [
...         ps.Point(0, 0),
...         ps.Point(1, 1),
...         ps.Point(2, 4),
...         ps.Point(3, 9),
...         ps.Point(4, 16),
...     ]
... )
>>> fig = ps.Figure(0, 5, 0, 16, backend=MatplotlibBackend)
>>> fig.add(s)
>>> fig.save("pysketcher/images/spline.png")

An example of Spline.

Parameters:

• points (List[Point]) –

• degree (int) –

• resolution (int) –

class pysketcher.Spring(start, length, width=None, bar_length=None, num_windings=11, teeth=False)

Bases: Composition

A representation of a spring.

Specify a vertical spring, starting at start and with length as total vertical length. In the middle of the spring there are num_windings circular windings to illustrate the spring. If teeth is true, the spring windings look like saw teeth, otherwise the windings are smooth circles. The parameters width (total width of spring) and bar_length (length of first and last bar are given sensible default values if they are not specified (these parameters can later be extracted as attributes, see table below).

Examples

>>> L = 12.0
>>> H = L / 6.0
>>> start = ps.Point(0.0, 0.0)
>>> s = ps.Spring(start, L)
>>> fig = ps.Figure(-2, 2, -1, L + H, backend=MatplotlibBackend)
>>> fig.add(s)
>>> fig.save("pysketcher/images/spring.png")

An example of a Spring.

Parameters:

• start (Point) –

• length (float) –

• width (float) –

• bar_length (float) –

• num_windings (int) –

• teeth (bool) –

class pysketcher.Style

Bases: object

Represents the visual characteristics of a Drawable object.

class ArrowStyle(value, names=None, *, module=None, qualname=None, type=None, start=1, boundary=None)

Bases: DocEnum

Represents the style of arrow which can adorn a line.

DOUBLE = Arrow(start=True, end=True)

END = Arrow(start=False, end=True)

START = Arrow(start=True, end=False)

class Color(value, names=None, *, module=None, qualname=None, type=None, start=1, boundary=None)

Bases: DocEnum

Represents the color in which something should be rendered.

BLACK = 2

BLUE = 9

BROWN = 3

CYAN = 8

GREEN = 7

GREY = 1

MAGENTA = 10

ORANGE = 5

PURPLE = 11

RED = 4

WHITE = 12

YELLOW = 6

class FillPattern(value, names=None, *, module=None, qualname=None, type=None, start=1, boundary=None)

Bases: DocEnum

Represents the pattern in which something can be shaded.

CIRCLE = 7

CROSS = 3

DOT = 6

HORIZONTAL = 2

SMALL_CIRCLE = 8

SQUARE = 4

STAR = 5

UP_LEFT_TO_RIGHT = 10

UP_RIGHT_TO_LEFT = 9

VERTICAL = 1

class LineStyle(value, names=None, *, module=None, qualname=None, type=None, start=1, boundary=None)

Bases: DocEnum

Represents the manner of line to be drawn.

DASHED = 4

DASH_DOT = 3

DOTTED = 2

SOLID = 1

property arrow: ArrowStyle

The arrow which should adorn the line.

property fill_color: Color

The color of fill.

property fill_pattern: FillPattern

The pattern of fill.

property line_color: Color

The color of line.

property line_style: LineStyle

The style of line.

property line_width: float

The width of line.

property shadow: float

The shadow which the object should cast.

class pysketcher.Text(text, position, direction=P(1.e+00, 0.e+00))

Bases: Shape

Place text on the drawing at the Point(x, y) position.

The text will be drawn in the given direction

Parameters:

• text (str) – The text to be displayed.

• position (Point) – Point, The position the text will be displayed at.

• direction (Point) – Point, The direction the text will flow to.

Examples

>>> fig = ps.Figure(0.0, 4.0, 0.0, 4.0, MatplotlibBackend)
>>> code = ps.Text("This is some left text!", Point(2, 1))
>>> code.style.alignment = ps.TextStyle.Alignment.LEFT
>>> code.style.line_color = ps.TextStyle.Color.BLUE
>>> code.style.font_family = ps.TextStyle.FontFamily.SERIF
>>> code1 = ps.Text("This is some right text!", Point(2, 2))
>>> code1.style.alignment = ps.TextStyle.Alignment.RIGHT
>>> code1.style.line_color = ps.TextStyle.Color.GREEN
>>> code1.style.font_family = ps.TextStyle.FontFamily.SANS
>>> code2 = ps.Text("This is some center text!", Point(2, 3))
>>> code2.style.alignment = ps.TextStyle.Alignment.CENTER
>>> code2.style.line_color = ps.TextStyle.Color.RED
>>> code2.style.font_family = ps.TextStyle.FontFamily.MONO
>>> fig.add(code)
>>> fig.add(code1)
>>> fig.add(code2)
>>> fig.save("pysketcher/images/text.png")

An example of some Text.

rotate(angle, center)

Returns the text rotated through angle radians about centre.

Parameters:

• angle (Angle) –

• center (Point) –

Return type:

Text

scale(factor)

Scales the text by a factor of factor.

Parameters:

factor (float) –

Return type:

Text

set_alignment(alignment)

Sets the alignment of the text.

Parameters:

alignment (Alignment) – The new alignment of the text.

Returns:

The original text object with the style modified to the new alignment.

Return type:

Text

translate(vec)

Translates the text through vec.

Parameters:

vec (Point) –

Return type:

Text

property direction: Point

The direction in which the text flows.

property position: Point

The Point at which the text is located.

property style: TextStyle

Returns the style of the object so that the style can be altered.

property text: str

The text.

class pysketcher.TextPosition(value, names=None, *, module=None, qualname=None, type=None, start=1, boundary=None)

Bases: Enum

Specifies the position of text in Annotations.

class pysketcher.TextStyle

Bases: Style

Represents the visual style of a text object.

class Alignment(value, names=None, *, module=None, qualname=None, type=None, start=1, boundary=None)

Bases: DocEnum

Represents the horizontal alignment of text.

CENTER = 2

LEFT = 1

RIGHT = 3

class FontFamily(value, names=None, *, module=None, qualname=None, type=None, start=1, boundary=None)

Bases: DocEnum

Represents the font which should be used to render text.

MONO = 3

SANS = 2

SERIF = 1

property alignment

The alignment to be used when text is rendered.

property font_family: FontFamily

The family of font in which text is rendered.

property font_size: float

The size of text.

class pysketcher.Triangle(p1, p2, p3)

Bases: Curve

Triangle defined by its three vertices p1, p2, and p3.

Parameters:

• p1 (Point) – The first Point.

• p2 (Point) – The second Point.

• p3 (Point) – The third Point.

Examples

>>> model = ps.Triangle(ps.Point(1, 1), ps.Point(1, 4), ps.Point(3, 3))
>>> fig = ps.Figure(0, 5, 0, 5, backend=MatplotlibBackend)
>>> fig.add(model)
>>> fig.save("pysketcher/images/triangle.png")

An example of Triangle.

rotate(angle, center)

Rotates the Triangle through a angle about center.

Parameters:

• angle (float) – The angle through which the triangle should be rotated in radians.

• center (Point) – The point about which the triangle should be rotated.

Returns:

A copy of the triangle subjected to the specified rotation.

class pysketcher.UniformLoad(lower_left_corner, width, height, num_arrows=10)

Bases: Composition

Downward-pointing arrows indicating a vertical load.

The arrows are of equal length and filling a rectangle specified as in the Rectangle class.

Examples

>>> l = ps.UniformLoad(ps.Point(0.5, 0.5), 4, 0.5)
>>> fig = ps.Figure(0.0, 5.0, 0.0, 1, backend=MatplotlibBackend)
>>> fig.add(l)
>>> fig.save("pysketcher/images/uniform_load.png")

An example of a UniformLoad.

Parameters:

• lower_left_corner (Point) –

• width (float) –

• height (float) –

property mid_top: Point

The middle of the top of the load.

class pysketcher.VelocityProfile(start, height, profile, num_arrows, scaling=1)

Bases: Composition

A representation of the profile of velocity in laminar flow.

Parameters:

• start (Point) – the point from which the profile should start.

• height (float) – the height of the profile.

• profile (Callable[[float], Point]) – a function which provides the value of the profile at a given point

• num_arrows (int) – the number of arrows to display

• scaling (float) – a scaling factor

Examples

>>> def velocity_profile(y: float) -> ps.Point:
...     return ps.Point(y * (8 - y) / 4, 0)
>>> pr = ps.VelocityProfile(ps.Point(0, 0), 4, velocity_profile, 5)
>>> fig = ps.Figure(0, 4.1, 0, 4, backend=MatplotlibBackend)
>>> fig.add(pr)
>>> fig.save("pysketcher/images/velocity_profile.png")

An example of VelocityProfile.

class pysketcher.Wall(points, thickness)

Bases: Curve

A representation of a wall.

Parameters:

• points (List[Point]) – a List of Point through which the wall should pass.

• thickness (float) – the thickness of the wall.

Examples

>>> model = ps.Wall(
...     [
...         ps.Point(1, 1),
...         ps.Point(2, 2),
...         ps.Point(3, 2.5),
...         ps.Point(4, 2),
...         ps.Point(5, 1),
...     ],
...     0.1,
... )
>>> fig = ps.Figure(0, 6, 0, 3, backend=MatplotlibBackend)
>>> fig.add(model)
>>> fig.save("pysketcher/images/wall.png")

An example Wall.

class pysketcher.Wheel(center, radius, inner_radius=None, nlines=10)

Bases: Composition

A representation of a wheel.

Parameters:

• center (Point) – The center of the Wheel.

• radius (float) – The radius of the Wheel.

• inner_radius (float) – The radius of the hub of the Wheel.

• nlines (int) –

Examples

>>> w = ps.Wheel(ps.Point(1.0, 1.0), 0.5, 0.25)
>>> fig = ps.Figure(0.0, 2.0, 0.0, 2.0, backend=MatplotlibBackend)
>>> fig.add(w)
>>> fig.save("pysketcher/images/wheel.png")

An example of a Wheel.
